The RAIL rail-mounted system combining visible aiming laser (Green or Red), NIR aiming laser, NIR illumination laser (VCSEL), and 180-degree NIR wide-angle LED illuminator for confined spaces or Close Quarters Battle (CQB).

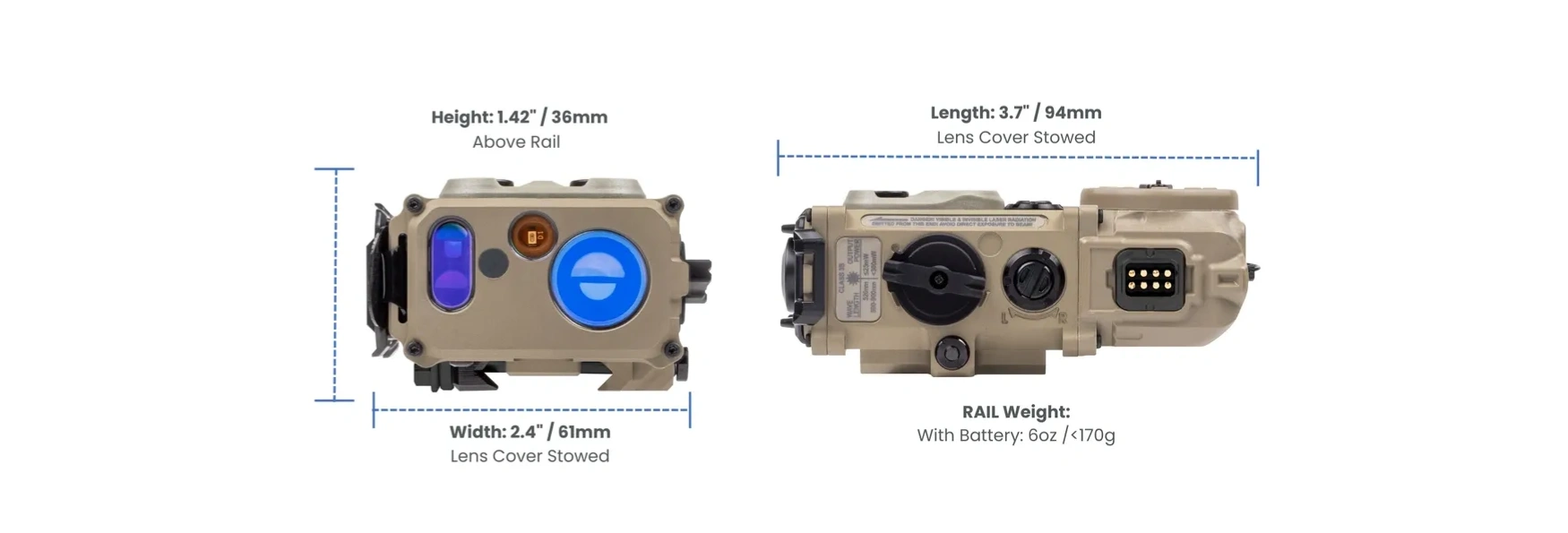

Weighs under 6 oz to maintain weapon
balance in high-mobility and CQB environments.
Combines red or green VIS laser, IR aim laser, IR
illuminator, and wide-angle NIR LED flood in one compact unit.
Instantly adapt aiming or illumination power
to match distance or lighting conditions.
Integrated NIR LED provides full-scene visibility for
confined spaces and room entries.
VIS and CQB override buttons are userconfigurablefor instinctive activation under pressure.
Adjust beam divergence and location
without affecting aiming lasers.
Easy to use buttons and rotary dial ensure quick
operation under stress.
Seven-position dial includes open slots for future
feature upgrades.
Manual brightness control and auto-dimming
sensor for day/night adaptation. Display can be disabled during operation.
Aptly designed buttons for confident manipulation with gloves.
MIL-STD-1913 rail grabber secures tightly to
standard weapon platforms.
Runs on a single CR123A battery for reliable field
operation.
RAIL (pdf)
